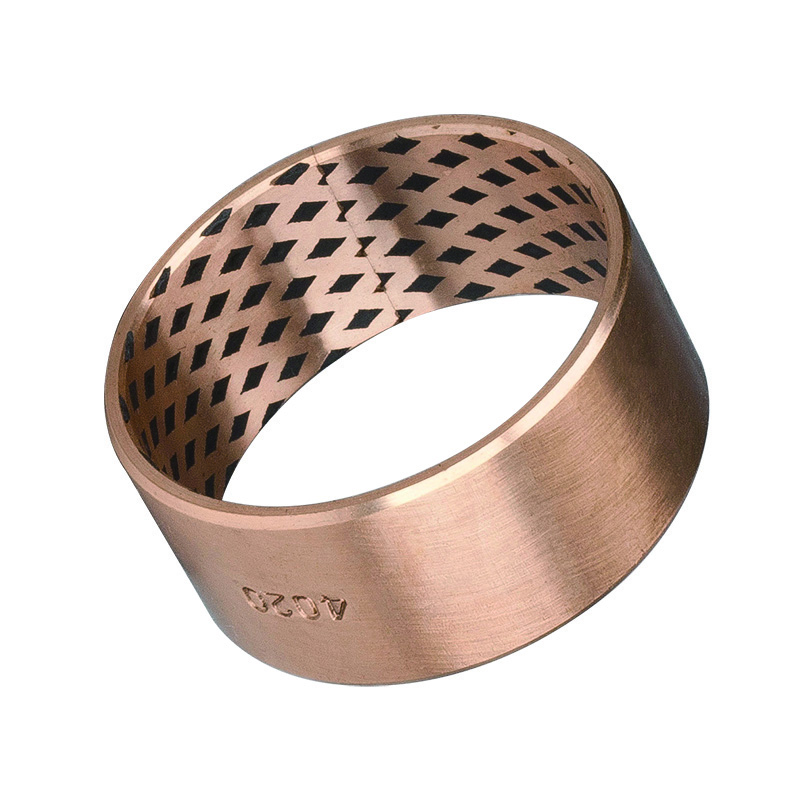

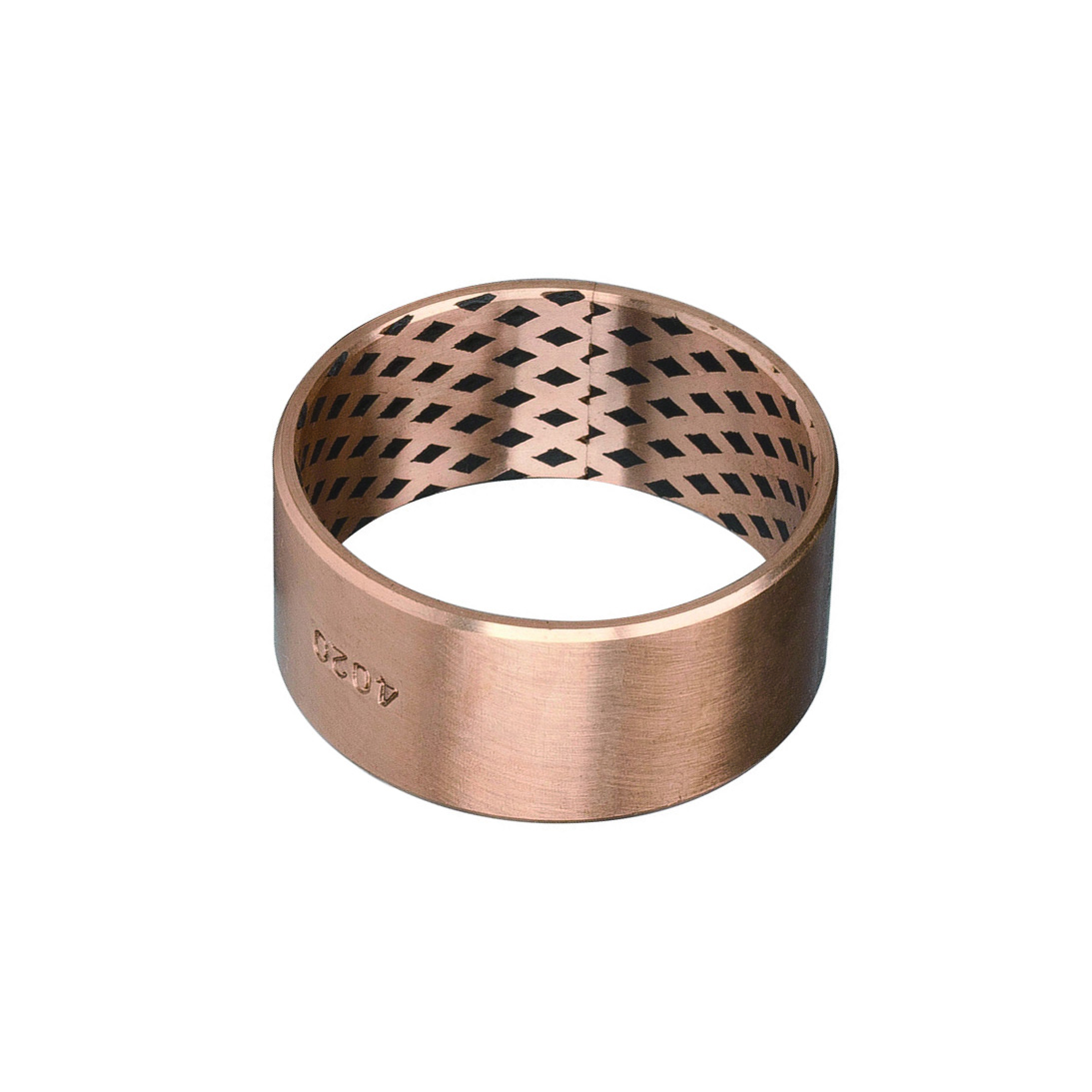

Cold Extrusion Starter Motor Oilless Graphite Bronze Bushing

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{font-size:16px}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-8{font-size:24px}#detail_decorate_root .magic-9{font-size:14px}#detail_decorate_root .magic-10{text-align:center}#detail_decorate_root .magic-11{text-align:center;margin:0;padding:0}#detail_decorate_root .magic-12{width:750px}#detail_decorate_root .magic-13{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-14{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-15{margin-top:-79px;margin-left:-50px;width:910px;height:910px}#detail_decorate_root .magic-16{margin:0;padding:0}#detail_decorate_root .magic-17{width:750px;border-collapse:collapse}#detail_decorate_root .magic-18{min-height:18px;padding:5px 10px;overflow:hidden;width:267px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-19{min-height:18px;padding:5px 10px;overflow:hidden;width:435px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-20{min-height:18px;padding:5px 10px;overflow:hidden;width:724px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-21{display:none}#detail_decorate_root .magic-22{min-height:18px;padding:5px 10px;overflow:hidden;width:164px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-23{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:320px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:-60px;margin-left:0;width:750px;height:500.25px}#detail_decorate_root .magic-26{overflow:hidden;width:373px;height:201.07816711590297px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:0;margin-left:0;width:407px;height:201px}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:201.07816711590297px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:373px;height:214px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:-53.28571428571429px;width:482px;height:321px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:-109.58760107816713px;width:482px;height:321px}#detail_decorate_root .magic-34{overflow:hidden;width:498px;height:526.6937974520654px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-35{margin-top:0;margin-left:-68.08969244627461px;width:702px;height:526px}#detail_decorate_root .magic-36{width:248px}#detail_decorate_root .magic-37{overflow:hidden;width:248px;height:172.32358903930415px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:273px;height:204px}#detail_decorate_root .magic-39{overflow:hidden;width:248px;height:172.32358903930415px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-41{margin-top:-14.191354391472107px;margin-left:0;width:246px;height:326px}#detail_decorate_root .magic-42{overflow:hidden;width:247.33333333333334px;height:202.1886512763499px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:302px;height:202px}#detail_decorate_root .magic-44{overflow:hidden;width:247.33333333333334px;height:202.1886512763499px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-45{overflow:hidden;width:750px;height:320px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:-5px;margin-left:0;width:750px;height:500.25px}#detail_decorate_root .magic-47{overflow:hidden;width:750px;height:320px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-48{margin-top:0;margin-left:0;width:756.459px;height:320px}#detail_decorate_root .magic-49{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-50{padding:0;line-height:20px;color:#333;margin:0}#detail_decorate_root .magic-51{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-52{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-53{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-54{position:relative;left:-56px;top:0;width:524.542px;height:200px}#detail_decorate_root .magic-55{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-56{padding:0;font-size:16px;line-height:20px;color:#333;margin:0}#detail_decorate_root .magic-57{position:relative;left:0;top:0;width:371px;height:240.932px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:198.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:0;width:750px;height:198.75px}#detail_decorate_root .magic-60{line-height:26px}#detail_decorate_root .magic-61{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-62{width:446px}#detail_decorate_root .magic-63{overflow:hidden;width:446px;height:264.4743935309973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:0;margin-left:0;width:446px;height:264px} Product Description Cold Extrusion Starter Motor Oilless Graphite Bronze Bushing buje del tractor

Product Type:	TCB905
Application :	hoisting, mining machinery, forest machinery, agricultural machinery etc.
Material:	CuSn8P+Graphite
Density:	8.8g/cm3
Max Dynamic Load:	100N/mm²
Max Linear Velocity(Grease):	2.5m/s
Max PV Value Grease :	2.8N/mm²·m/s
Pressure Strength	>460N/mm²
Yield Strength N/mm2	>280N/mm2
Hardness:	90-150
Mating Axis	Hardness ≥50, Roughness 0.4-1.0
Working Temperature	-40~+150℃
Friction Coefficient	0.03~0.1
Linear Expansion Coefficient	18.5×10-6/K
coefficient of heat conduction	58W/m·K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.

Related Products Company Profile TEHCO is dedicated to the research and manufacture of all kinds of bushings,spare parts,machinery parts and precision parts. We are approved by the third party concerning the quality certificate. Up to now, we have developed a total of ten categories of products,including composite Self-lubricating Bushing, Boundary Lubricating Bushing, Bimetal Bushing, oil sintered bushing,Solid Lubricating Bushing with graphite, Steel Bushing , casting Copper Bushing, Wrapped Bronze Bushing,Spherical Plain Bearing and filament wound Bearing . The quality and performance have met or exceed international standards.    We have complete in-house research and development, production, testing and marketing capabilities. Exhibition Production Equipment Packing & Delivery Inner Packing For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)


 Outer Packing 8pcs-300pcs per carton (depends on the product size)

 Shipment Packing 18-24 cartons per wood case or pallet, shockproof and safe for transportation

FAQ Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.

Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.

Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.

Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.

Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.
We hope our customers become stronger and stronger to be with us.
Welcome Your Inquriy and Trial Order !
HOW TO CONTACT US
If you have any questions, please feel free to contact us,you are always welcome, thank you!  Have a good Day!

Contact us if you need more details on graphite bronze bushing. We are ready to answer your questions on packaging, logistics, certification or any other aspects about starter motor bushing、oilless bushing. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Wrapped Bronze Bushing
