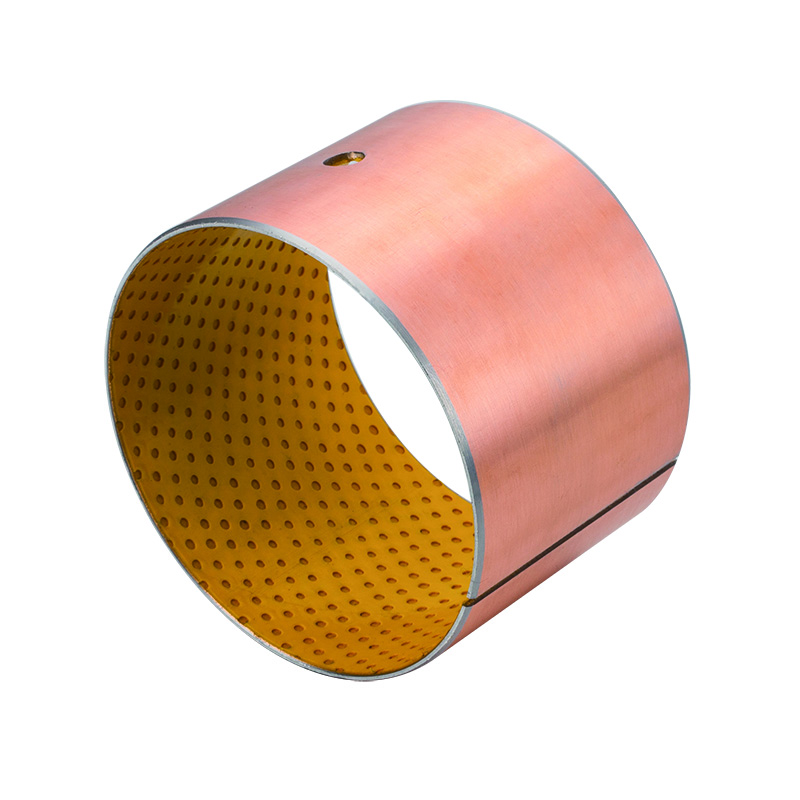

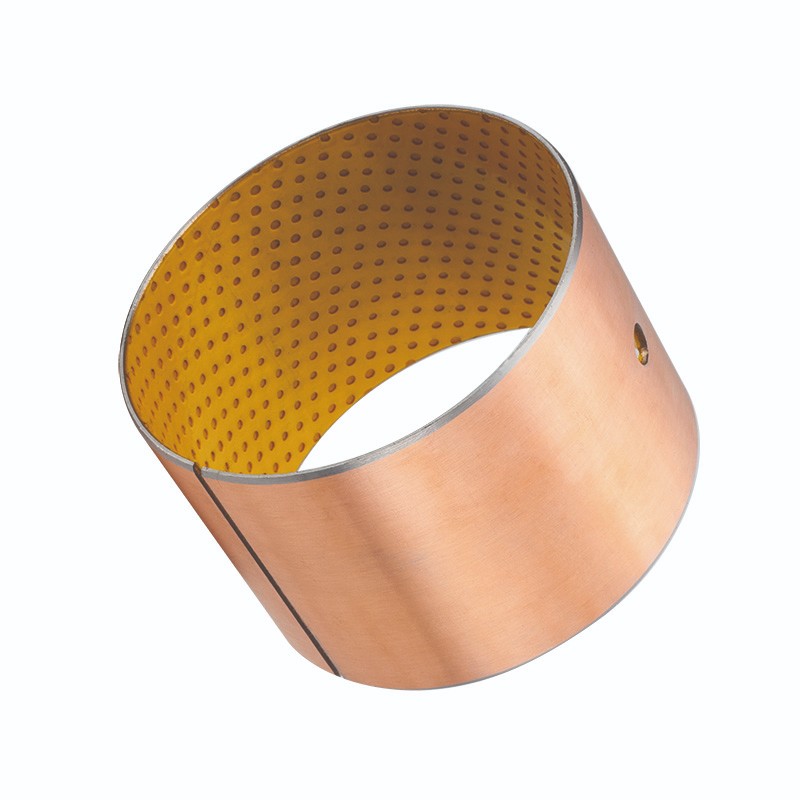

POM Boundary Lubricating Oilless Bushing Sliding Sleeve Bush

Product Description

#detail_decorate_root .magic-0{border-bottom-width:2px;border-bottom-style:solid;border-bottom-color:#53647a;background-color:#c5ccde;margin-left:0;margin-right:0;padding-left:8px;padding-right:8px;color:#53647a;font-family:Roboto;font-size:24px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:18px}#detail_decorate_root .magic-7{text-align:center;margin:0;padding:0}#detail_decorate_root .magic-9{width:750px}#detail_decorate_root .magic-10{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-12{width:750px;border-collapse:collapse}#detail_decorate_root .magic-13{padding:5px 10px;overflow:hidden;width:266px;box-sizing:content-box}#detail_decorate_root .magic-14{padding:5px 10px;overflow:hidden;width:436px;box-sizing:content-box}#detail_decorate_root .magic-15{padding:5px 10px;overflow:hidden;width:724px;box-sizing:content-box}#detail_decorate_root .magic-16{display:none}#detail_decorate_root .magic-17{padding:5px 10px;overflow:hidden;width:164px;box-sizing:content-box}#detail_decorate_root .magic-18{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:-13.017543859649125px;margin-left:-13.017543859649125px;width:271px;height:271px}#detail_decorate_root .magic-20{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-21{margin-top:-9.012145748987855px;margin-left:-11.01484480431849px;width:271px;height:271px}#detail_decorate_root .magic-22{margin-top:-10.013495276653172px;margin-left:-18.02429149797571px;width:271px;height:271px}#detail_decorate_root .magic-23{margin-top:-18.02429149797571px;margin-left:-9.012145748987855px;width:271px;height:271px}#detail_decorate_root .magic-24{margin-top:0;margin-left:0;width:259px;height:259px}#detail_decorate_root .magic-25{margin-top:-8.010796221322538px;margin-left:-15.02024291497976px;width:257px;height:257px}#detail_decorate_root .magic-26{overflow:hidden;width:750px;height:320px;margin-top:0;margin-bottom:4px;margin-left:0;margin-right:0}#detail_decorate_root .magic-27{margin-top:-60px;margin-left:0;width:750px;height:500.25px}#detail_decorate_root .magic-28{overflow:hidden;width:373px;height:201.07816711590297px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-29{margin-top:0;margin-left:0;width:407px;height:201px}#detail_decorate_root .magic-30{overflow:hidden;width:373px;height:201.07816711590297px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-31{margin-top:0;margin-left:0;width:373px;height:214px}#detail_decorate_root .magic-32{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-33{margin-top:0;margin-left:-53.28571428571429px;width:482px;height:321px}#detail_decorate_root .magic-34{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:-109.58760107816713px;width:482px;height:321px}#detail_decorate_root .magic-36{margin:0;padding:0}#detail_decorate_root .magic-37{overflow:hidden;width:498px;height:526.6937974520654px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-38{margin-top:0;margin-left:-68.08969244627461px;width:702px;height:526px}#detail_decorate_root .magic-39{width:248px}#detail_decorate_root .magic-40{overflow:hidden;width:248px;height:172.32358903930415px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:273px;height:204px}#detail_decorate_root .magic-42{overflow:hidden;width:248px;height:172.32358903930415px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:247px;height:185px}#detail_decorate_root .magic-44{margin-top:-14.191354391472107px;margin-left:0;width:246px;height:326px}#detail_decorate_root .magic-45{overflow:hidden;width:247.33333333333334px;height:202.1886512763499px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-46{margin-top:0;margin-left:0;width:302px;height:202px}#detail_decorate_root .magic-47{overflow:hidden;width:247.33333333333334px;height:202.1886512763499px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-48{overflow:hidden;width:750px;height:320px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:-5px;margin-left:0;width:750px;height:500.25px}#detail_decorate_root .magic-50{overflow:hidden;width:750px;height:320px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:0;margin-left:0;width:756.459px;height:320px}#detail_decorate_root .magic-52{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-53{padding:0;line-height:20px;color:#333;margin:0}#detail_decorate_root .magic-54{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-55{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-56{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-57{position:relative;left:-56px;top:0;width:524.542px;height:200px}#detail_decorate_root .magic-58{padding:0;margin:0;color:#333;font-size:16px;white-space:pre-wrap}#detail_decorate_root .magic-59{padding:0;font-size:16px;line-height:20px;color:#333;margin:0}#detail_decorate_root .magic-60{padding:0;margin:0;white-space:pre-wrap;font-size:16px}#detail_decorate_root .magic-61{position:relative;left:0;top:0;width:371px;height:240.932px}#detail_decorate_root .magic-62{overflow:hidden;width:750px;height:198.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-63{margin-top:0;margin-left:0;width:750px;height:198.75px}#detail_decorate_root .magic-64{line-height:26px}#detail_decorate_root .magic-65{width:300px;display:flex;flex-direction:column;margin-right:4px;margin-left:0}#detail_decorate_root .magic-66{width:446px}#detail_decorate_root .magic-67{overflow:hidden;width:446px;height:264.4743935309973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:446px;height:264px}#detail_decorate_root .magic-69{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap} Product Description

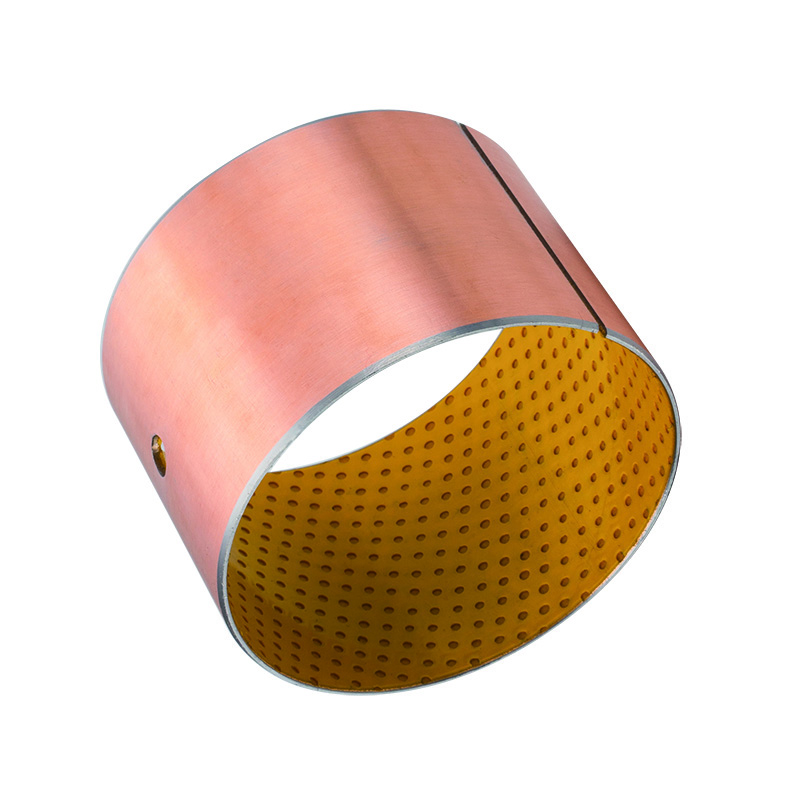

POM Boundary Lubricating Oilless Bushing Sliding Sleeve Bush
Product Type:
TCB201

Application :
The vehicle chassis, forming machine tools, STEEL metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc
Material:
Steel +Bronze +POM
Max load capacity P:
Static load 140N/mm²  / Dynamic load 70N/mm²
Max line speed V:
Grease lubrication 2.5m/s
PV value limit:
Grease lubrication 2.8N/mm²·m/s
Friction coef u:
0.06~0.12
Mating Axis:
Hardness >270HB / Roughness Ra=0.4~1.25
Working Temperature:
-40~+120℃
Thermal conductivity:
52W/(m·k)
Coefficient of linear expansion:
11×10-6/K
In addition to the standard product catalog is displayed, we provide non-standard product or to order according to customer requirements.
