Home > Products > Self-lubricating Bushing > High Quality Split Pump Steel Backed Bronze Oilless Sleeve Bushing

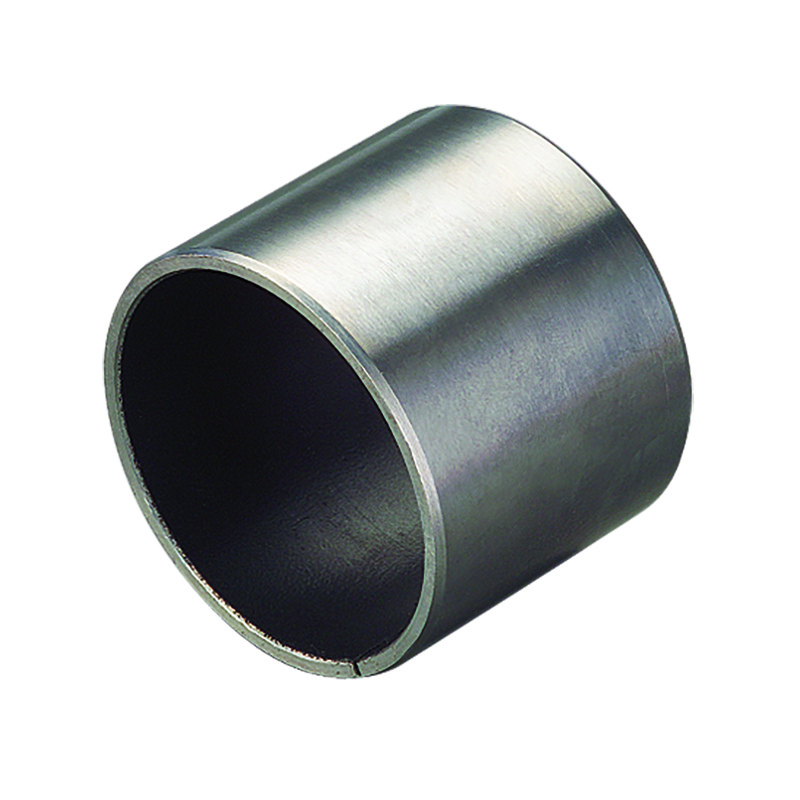

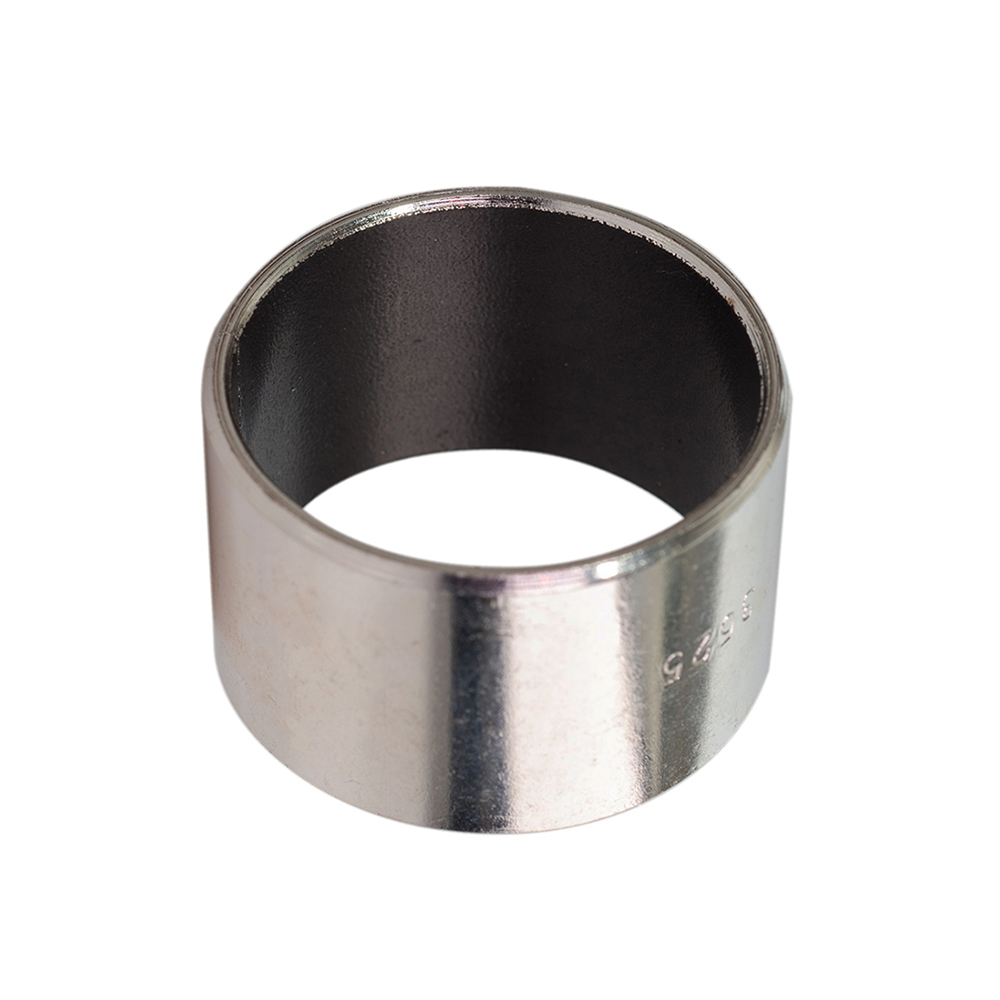

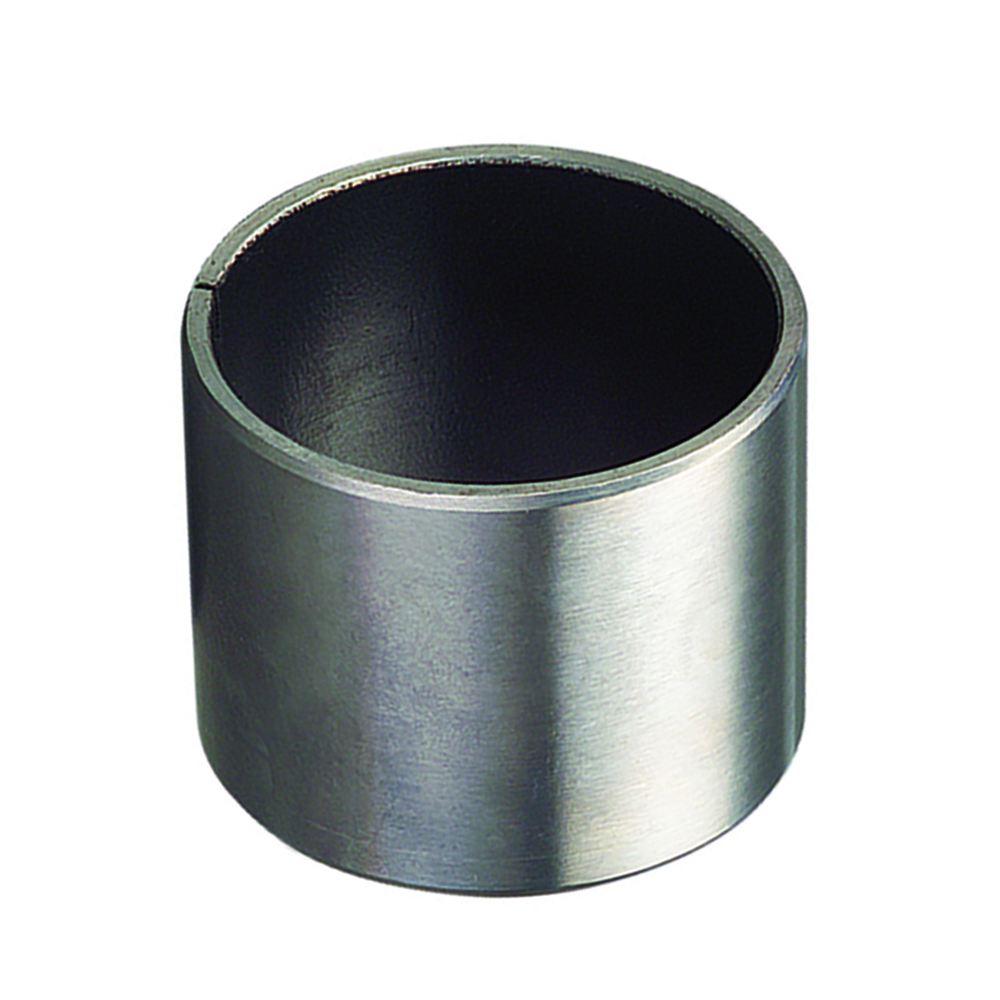

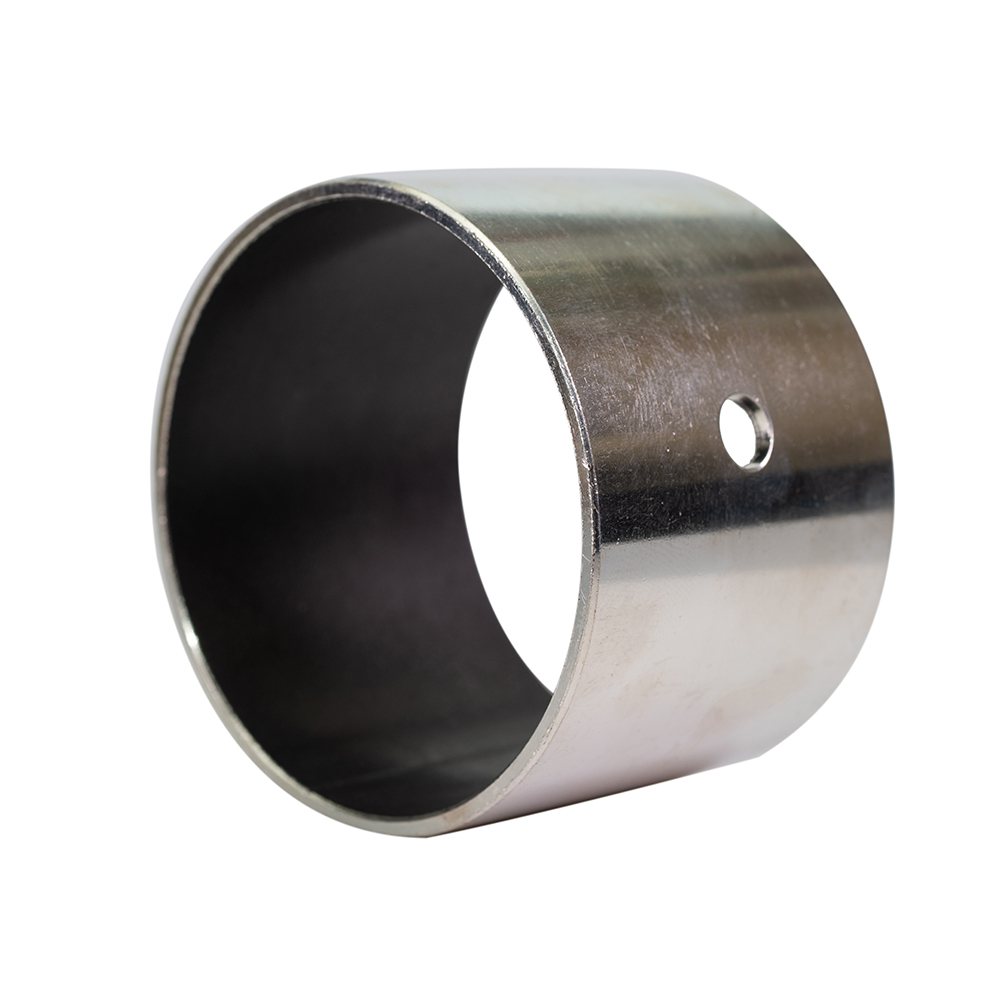

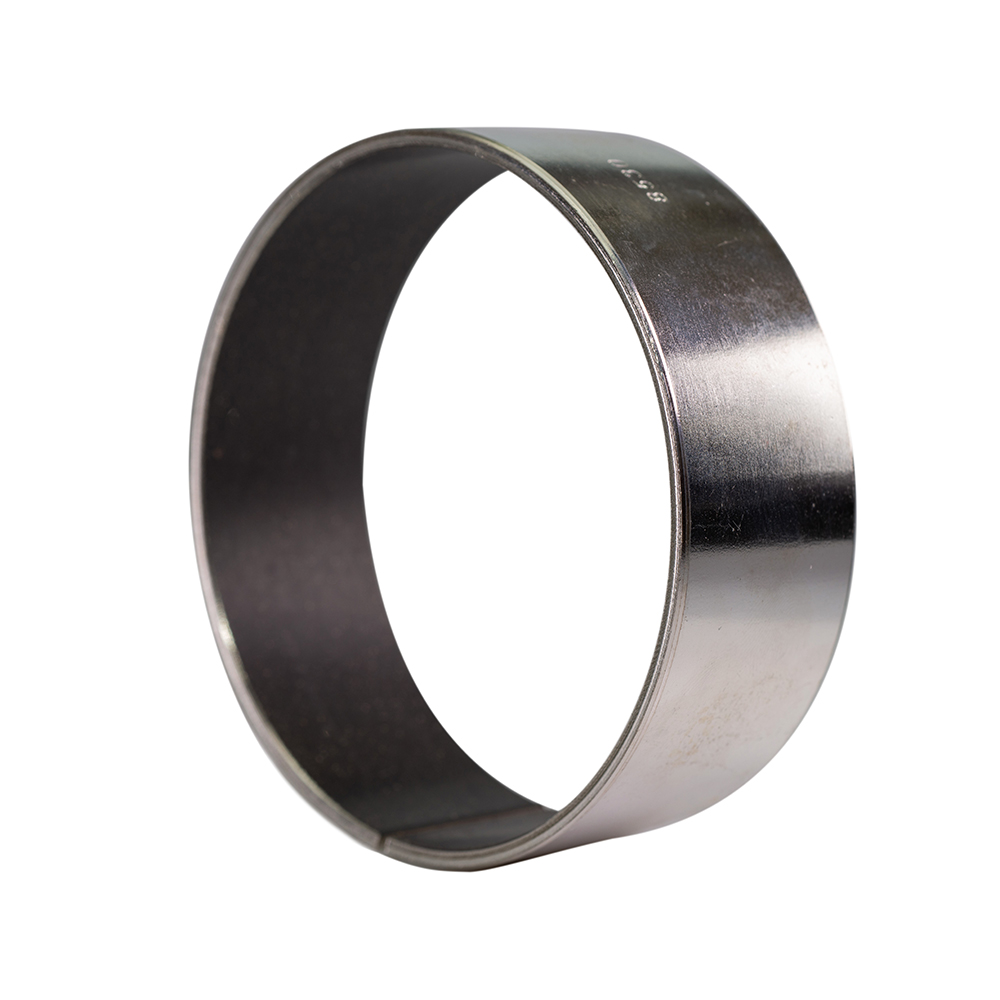

High Quality Split Pump Steel Backed Bronze Oilless Sleeve Bushing

Product Description

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Arial,Helvetica;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{width:750px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:356px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:-44.5455px;width:825px;height:356.4px}#detail_decorate_root .magic-10{width:750px;border-collapse:collapse}#detail_decorate_root .magic-11{padding:5px 10px;overflow:hidden;width:191px;box-sizing:content-box}#detail_decorate_root .magic-12{text-align:center}#detail_decorate_root .magic-13{padding:5px 10px;overflow:hidden;width:500px;box-sizing:content-box}#detail_decorate_root .magic-14{margin:0;padding:0}#detail_decorate_root .magic-15{overflow:hidden;width:184.5px;height:203.30578512396693px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:-9.148760330578511px;width:201px;height:201px}#detail_decorate_root .magic-17{overflow:hidden;width:184.5px;height:203.30578512396693px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-18{margin-top:-16.264462809917354px;margin-left:-20.33057851239669px;width:223px;height:223px}#detail_decorate_root .magic-19{margin-top:-20.33057851239669px;margin-left:-18.297520661157023px;width:223px;height:223px}#detail_decorate_root .magic-20{margin-top:-18.297520661157023px;margin-left:-16.264462809917354px;width:223px;height:223px}#detail_decorate_root .magic-21{margin-top:-7.115702479338843px;margin-left:-23.380165289256198px;width:223px;height:223px}#detail_decorate_root .magic-22{margin-top:0;margin-left:-6.099173553719008px;width:201px;height:201px}#detail_decorate_root .magic-23{margin-top:0;margin-left:-4.066115702479339px;width:203px;height:203px}#detail_decorate_root .magic-24{margin-top:-15.24793388429752px;margin-left:-19.314049586776857px;width:223px;height:223px}#detail_decorate_root .magic-25{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-26{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-27{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-28{position:relative;left:0;top:-60.8px;width:371px;height:308.301px}#detail_decorate_root .magic-29{padding:0;margin:0;color:#333;font-size:16px;white-space:pre-wrap}#detail_decorate_root .magic-30{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-31{padding:0;margin:0;white-space:pre-wrap;font-size:16px}#detail_decorate_root .magic-32{position:relative;left:0;top:-51.2px;width:371px;height:310.527px}#detail_decorate_root .magic-33{position:relative;left:0;top:-28.8px;width:371px;height:247.457px}#detail_decorate_root .magic-34{position:relative;left:0;top:0;width:371px;height:247.457px}#detail_decorate_root .magic-35{position:relative;left:0;top:0;width:371px;height:213.696px}#detail_decorate_root .magic-36{position:relative;left:0;top:0;width:382.409px;height:200px}#detail_decorate_root .magic-37{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-38{width:244.656px;height:234px;overflow:hidden}#detail_decorate_root .magic-39{position:relative;left:0;top:0;width:261.8px;height:231px}#detail_decorate_root .magic-40{position:relative;left:-16px;top:0;width:312px;height:234px}#detail_decorate_root .magic-41{position:relative;left:0;top:-21.6px;width:244.656px;height:265.696px}#detail_decorate_root .magic-42{position:relative;left:0;top:-46.4px;width:238.7px;height:316.8px}#detail_decorate_root .magic-43{position:relative;left:-17.6px;top:0;width:280.8px;height:210.6px}#detail_decorate_root .magic-44{position:relative;left:0;top:-51.2px;width:244.656px;height:326.208px}#detail_decorate_root .magic-45{position:relative;left:-28.8px;top:0;width:277.2px;height:210.6px}#detail_decorate_root .magic-46{position:relative;left:-35.2px;top:0;width:343.2px;height:257.4px}#detail_decorate_root .magic-47{position:relative;left:-143.2px;top:-81.6px;width:457.6px;height:344.3px}#detail_decorate_root .magic-48{position:relative;left:0;top:-22.4px;width:220.5px;height:293.4px}#detail_decorate_root .magic-49{position:relative;left:0;top:0;width:414.159px;height:234px}#detail_decorate_root .magic-50{position:relative;left:0;top:-17.6px;width:243.1px;height:323.4px}#detail_decorate_root .magic-51{overflow:hidden;width:498px;height:320.4220821001158px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-52{margin-top:-53.6706987517694px;margin-left:0;width:498px;height:373px}#detail_decorate_root .magic-53{width:248px}#detail_decorate_root .magic-54{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:-19.462428879733174px;margin-left:-7.29841082989994px;width:273px;height:204px}#detail_decorate_root .magic-56{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:-17.84055980642208px;margin-left:0;width:246px;height:327px}#detail_decorate_root .magic-58{overflow:hidden;width:750px;height:397.8px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-59{margin-top:0;margin-left:-25.6px;width:816.3px;height:397.8px}#detail_decorate_root .magic-60{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-61{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0} Products Show Product name: High Quality Split Pump STEEL Backed Bronze Oilless Sleeve Bushing
Product Description all magic-10">
Size
Customized
Material
Steel + Bronze powder + PTFE
Color
Natural
Certification
ISO9001, TS16949
Outside surface Plating
COPPER/tin/zinc
Max load capacity P
Static Load 250N/mm²,Dynamic Load 140N/mm²,Oscoillation Load 60N/mm²
Max line speed V
Dry Lubrication 2.5m/s,Oil Lubrication >10m/s
PV value limit
Dry Lubrication 1.8N/mm²· m/s,Oil Lubrication 3.6N/mm²· m/s
Friction coef u
Dry Lubrication 0.08~0.25,Oil Lubrication 0.02~0.08
Max Working temperature
-200~280℃
Mating Axis
Hardness >220 HB,Roughness Ra=0.4~1.25
Thermal conductivity
40W/(m·k)
Coefficient of linear expansion
11×10-6/K
Application
medium and high pressure gear pump, ram pump, vane pumps
Explanation: Its material structure is Steel base + Bronze powder + PTFE and filler. This product is developed according to the high PV value of hydraulic pump. It can offer the low friction coefficient and good anti-abrasion. It can be used in semi-dry condition.
Related Products Our Company Production workshop Production workshop
Production operation
Production operation Office environment Office environment Packing & Delivery Packing Details: Anti-rust Paper, Carton, Wood Case or Pallet. 1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products 1: 2pcs-10pcs per plastic film roller (depends on the product size) For bigger products 2: 2pcs-10pcs per plastic film roller (depends on the product size) 2. Outer Packing
8pcs-300pcs per carton (depends on the product size)



3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.


Delivery pictures
Products loaded on container. Products arrives at the destination.
Customer is unloading. Exhibition Photos Marketing Network Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
FAQ Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products. Q: Hong long is your delivery time? A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra? A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality? A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders? A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.

Contact us if you need more details on steel backed bronze bushings. We are ready to answer your questions on packaging, logistics, certification or any other aspects about oilless bushing、pump bushing. If these products fail to match your need, please contact us and we would like to provide relevant information.
