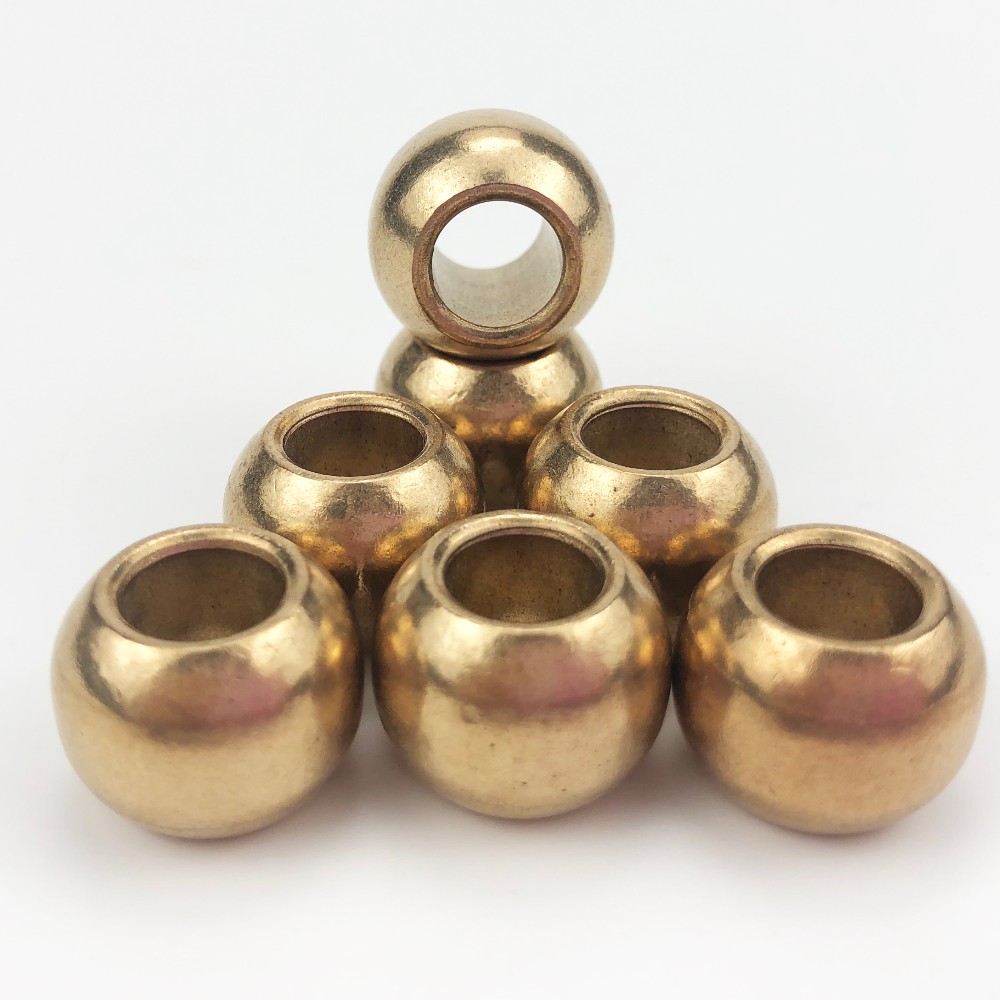

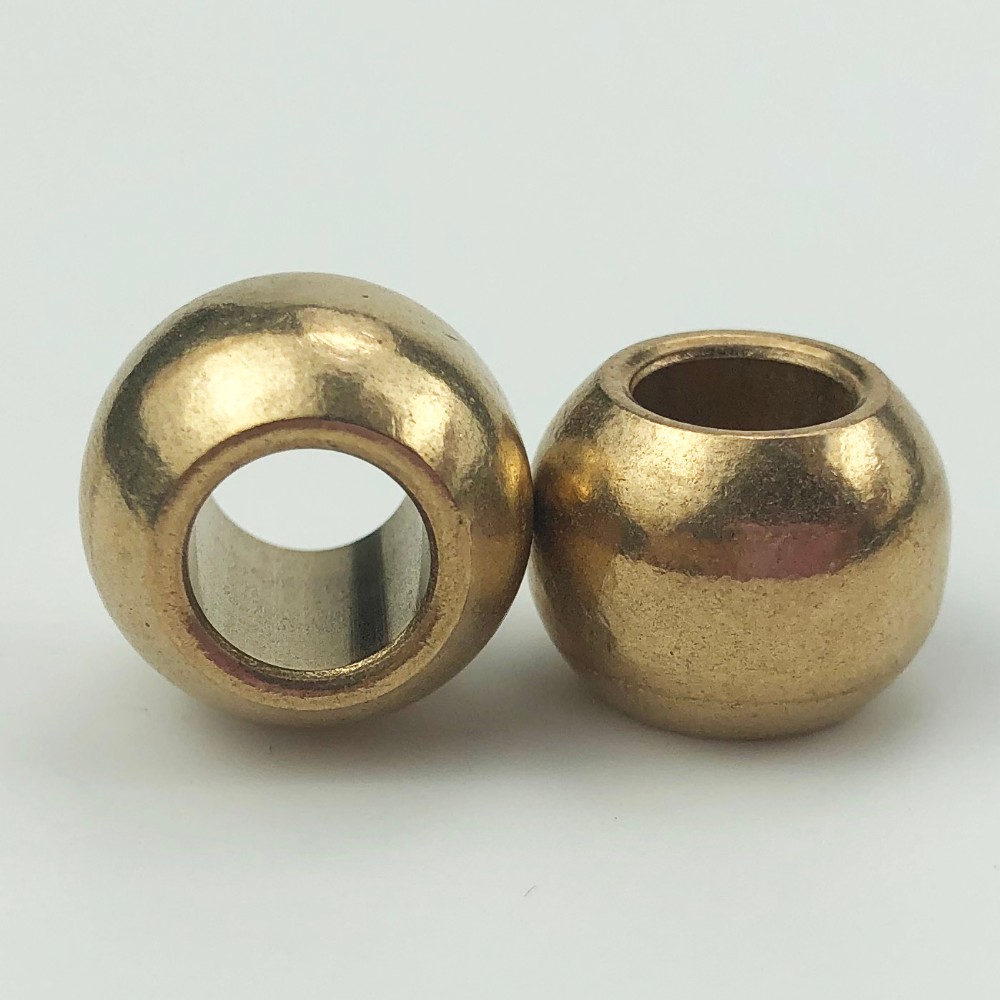

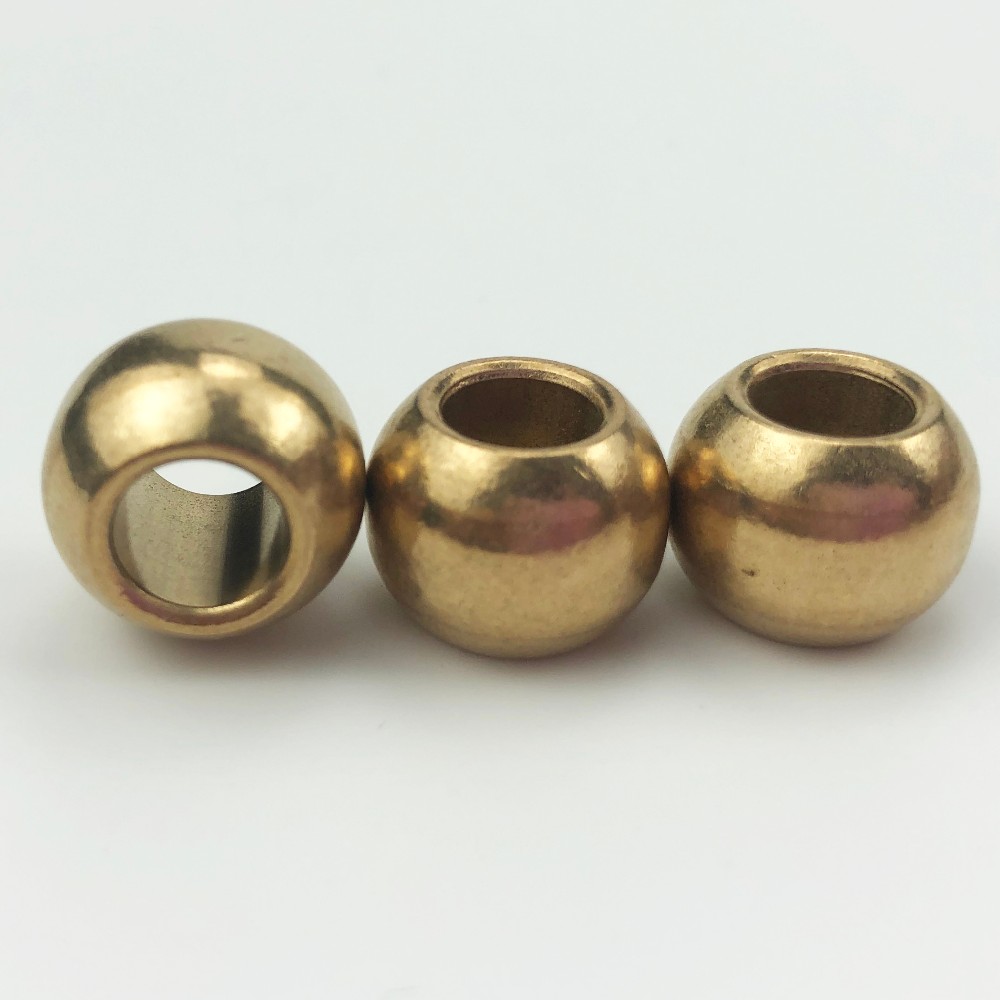

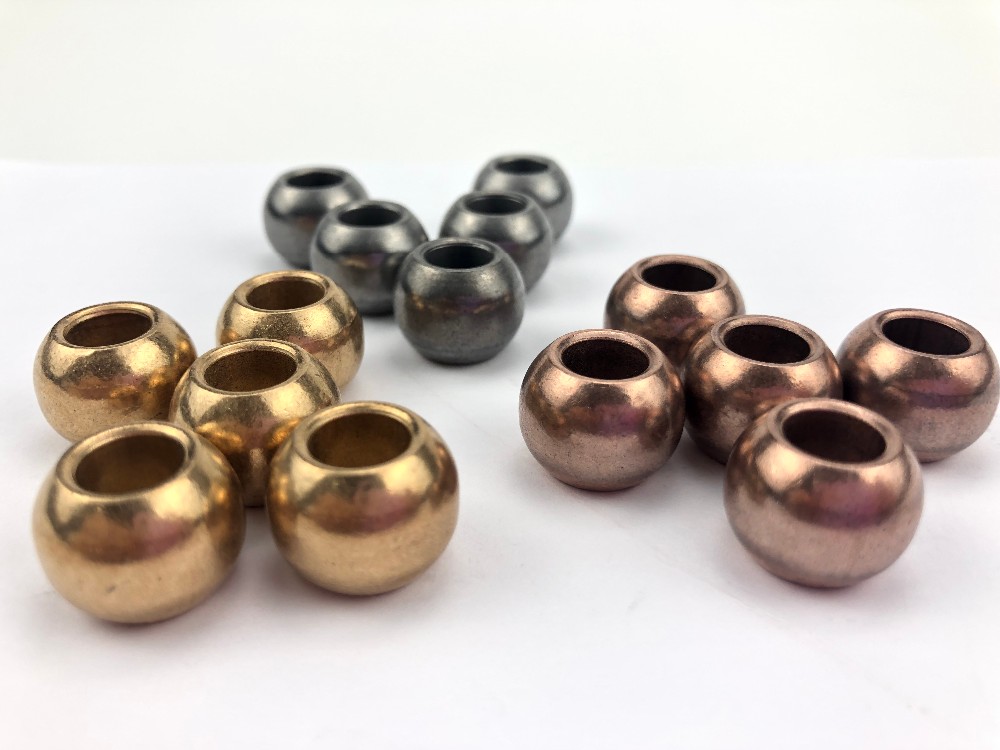

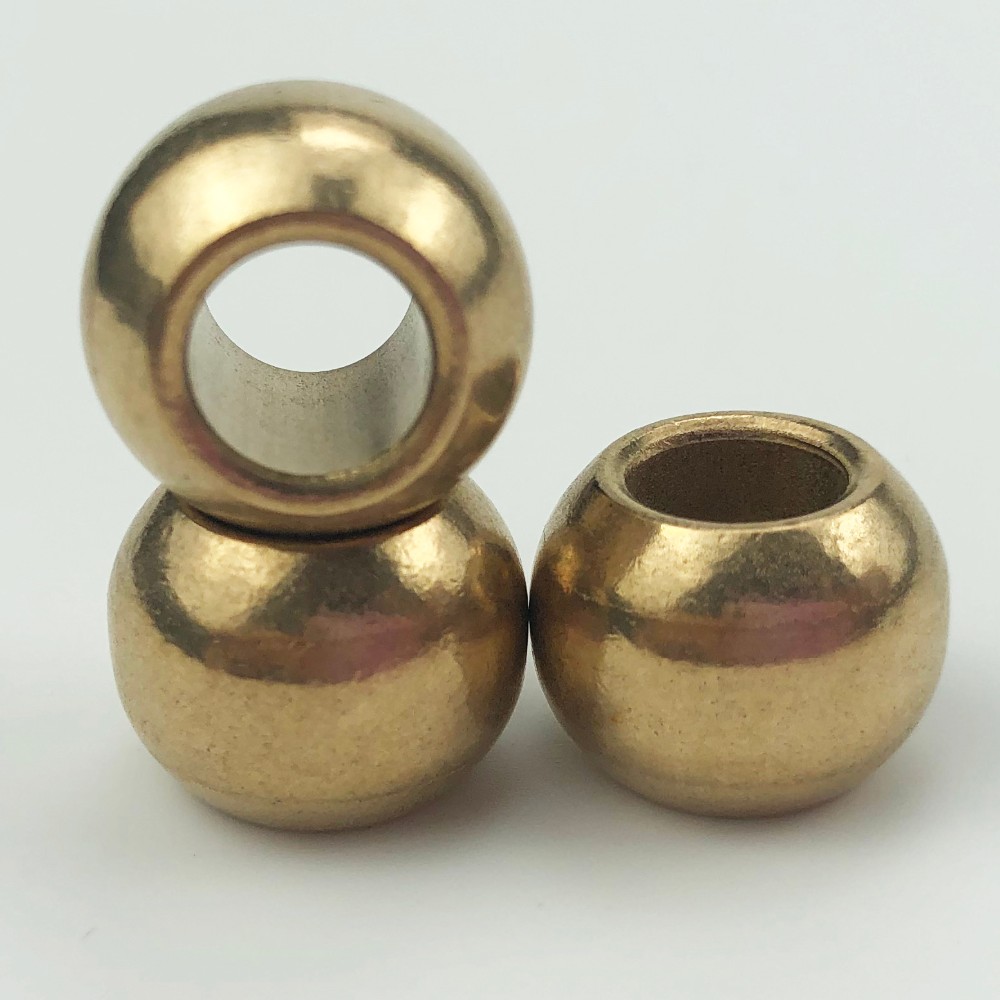

Sintered Copper Oilite Bronze Ball Guide Bushing

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-3{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-4{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-5{width:750px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-8{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-10{width:750px;border-collapse:collapse}#detail_decorate_root .magic-11{padding:5px 10px;overflow:hidden;width:243px;box-sizing:content-box}#detail_decorate_root .magic-12{text-align:center}#detail_decorate_root .magic-13{padding:5px 10px;overflow:hidden;width:444.021px;box-sizing:content-box}#detail_decorate_root .magic-14{margin:0;padding:0}#detail_decorate_root .magic-15{overflow:hidden;width:184.5px;height:203.30578512396693px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:-9.148760330578511px;width:201px;height:201px}#detail_decorate_root .magic-17{overflow:hidden;width:184.5px;height:203.30578512396693px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-18{margin-top:-16.264462809917354px;margin-left:-20.33057851239669px;width:223px;height:223px}#detail_decorate_root .magic-19{margin-top:-20.33057851239669px;margin-left:-18.297520661157023px;width:223px;height:223px}#detail_decorate_root .magic-20{margin-top:-18.297520661157023px;margin-left:-16.264462809917354px;width:223px;height:223px}#detail_decorate_root .magic-21{margin-top:-7.115702479338843px;margin-left:-23.380165289256198px;width:223px;height:223px}#detail_decorate_root .magic-22{margin-top:0;margin-left:-6.099173553719008px;width:201px;height:201px}#detail_decorate_root .magic-23{margin-top:0;margin-left:-4.066115702479339px;width:203px;height:203px}#detail_decorate_root .magic-24{margin-top:-15.24793388429752px;margin-left:-19.314049586776857px;width:223px;height:223px}#detail_decorate_root .magic-25{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-26{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-27{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-28{position:relative;left:0;top:-60.8px;width:371px;height:308.301px}#detail_decorate_root .magic-29{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-30{padding:0;font-size:16px;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-31{position:relative;left:0;top:-51.2px;width:371px;height:310.527px}#detail_decorate_root .magic-32{position:relative;left:0;top:-28.8px;width:371px;height:247.457px}#detail_decorate_root .magic-33{position:relative;left:0;top:0;width:371px;height:247.457px}#detail_decorate_root .magic-34{position:relative;left:0;top:0;width:371px;height:213.696px}#detail_decorate_root .magic-35{position:relative;left:0;top:0;width:382.409px;height:200px}#detail_decorate_root .magic-36{position:relative;left:0;top:-6px;width:367.4px;height:325.6px}#detail_decorate_root .magic-37{position:relative;left:0;top:-73px;width:371px;height:402.906px}#detail_decorate_root .magic-38{position:relative;left:0;top:-75px;width:367.4px;height:275px}#detail_decorate_root .magic-39{position:relative;left:-35px;top:-82px;width:444.6px;height:333.9px}#detail_decorate_root .magic-40{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-41{width:244.656px;height:234px;overflow:hidden}#detail_decorate_root .magic-42{position:relative;left:0;top:-39px;width:244.656px;height:326.208px}#detail_decorate_root .magic-43{position:relative;left:0;top:0;width:414.159px;height:234px}#detail_decorate_root .magic-44{position:relative;left:0;top:-17.6px;width:243.1px;height:323.4px}#detail_decorate_root .magic-45{overflow:hidden;width:498px;height:320.4220821001158px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-46{margin-top:-53.6706987517694px;margin-left:0;width:498px;height:373px}#detail_decorate_root .magic-47{width:248px}#detail_decorate_root .magic-48{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:-19.462428879733174px;margin-left:-7.29841082989994px;width:273px;height:204px}#detail_decorate_root .magic-50{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-51{margin-top:-17.84055980642208px;margin-left:0;width:246px;height:327px}#detail_decorate_root .magic-52{overflow:hidden;width:750px;height:374.4784422809458px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-53{margin-top:0;margin-left:0;width:750.0000000000001px;height:374.4784422809458px}#detail_decorate_root .magic-54{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0} Products Show Product name: Sintered COPPER Oilite Bronze Ball Guide Bushing
Product Description all magic-10">

Size	Customized
Certification	ISO9001, TS16949
Material	Bronze powder(CuSn 6-6-3 ; CuSn 90-10)
Color	Natural
Density	6.4-6.8g/cm3
Static load	200N/mm2
Dynamic load	18N/mm2
Max linear speed	7m/s
Volume of oil impregnation	22%
Hardness	25HB
Friction coefficient	0.03μ
Traction resistance	10-20N
Elongation	1-2.5%
Max thermal emperature	-20~120
Application	fan, household appliances, electric tools, textiles machinery, chemical machinery and automobiles and official business machines

Explanation: TCB401 sintered bronze powder ball bushing is mold pressed under high pressure and then sintered under high temperature, and oil is soaked into the homogeneously spreaded tiny pores of the metal under vacuum. This Bearing can withstand dry condition in medium speed and low load for short time. Moreover it is cheap and stable in dimension.
Related Products Our Company Production workshop Production workshop
Production operation
Production operation Office environment Office environment Packing & Delivery Packing Details: Anti-rust Paper, Carton, Wood Case or Pallet. 1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag. For bigger products 1: 2pcs-10pcs per plastic film roller (depends on the product size) 2. Outer Packing 8pcs-300pcs per carton (depends on the product size)
3. Shipment Packing 18-24 cartons per wood case or pallet, shockproof and safe for transportation. Delivery pictures
Products loaded on container. Products arrives at the destination.
Customer is unloading. Exhibition Photos Marketing Network Tehco is always focusing on the overseas markets, by satisfying the ever-increasing demands of modernization of customers. We could provide products according to the international standards, and could also provide as per the customers' requests. With stable product quality and best level of services, our products have been exported to dozens of countries and regions from the Europe, the United States, and Southeast Asia, etc.
FAQ Q: Are you trading company or manufacturer?
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products. Q: Hong long is your delivery time? A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra? A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality? A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders? A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.

Contact us if you need more details on ball guide bush. We are ready to answer your questions on packaging, logistics, certification or any other aspects about oilite Bronze Bushing、sintered bush. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : Oil Sintered Bearing
