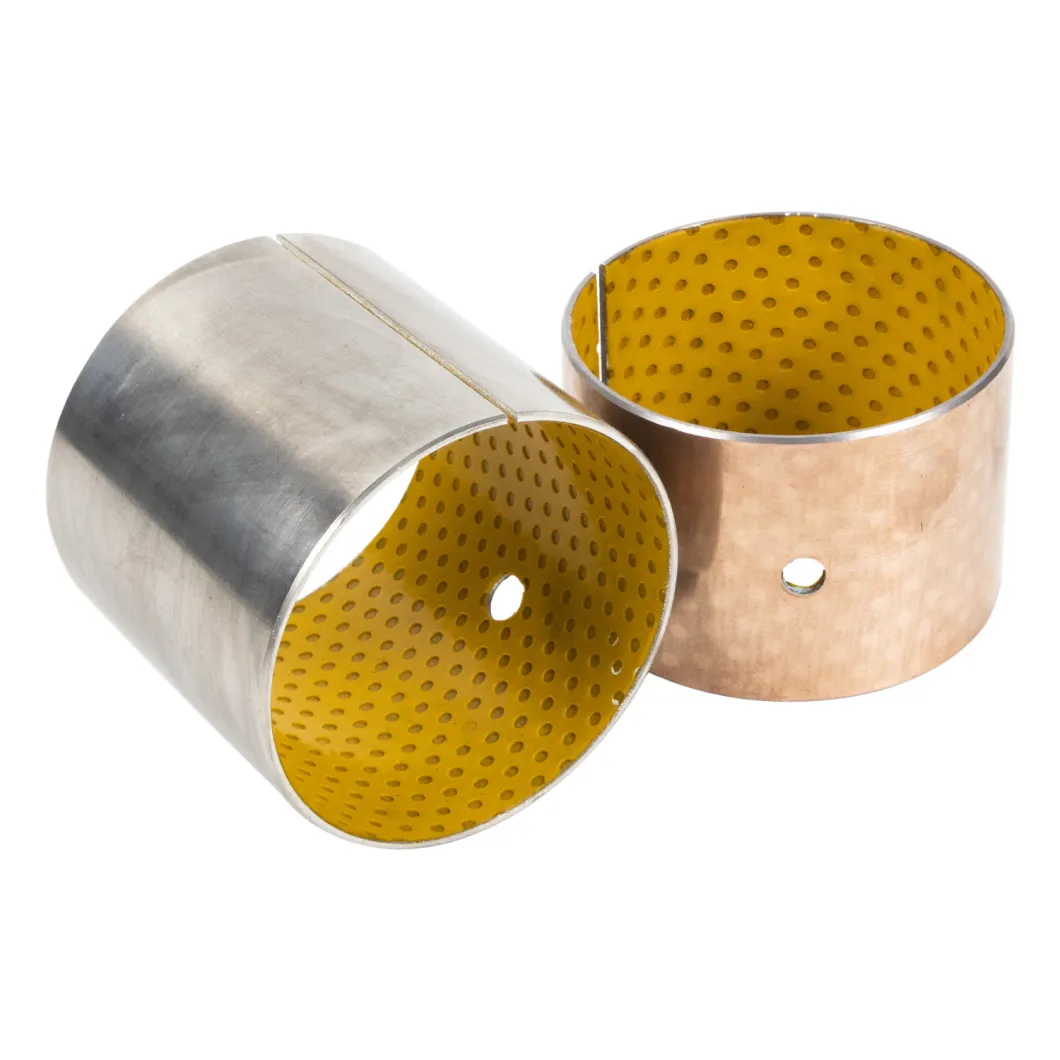

SF-2 boundary lubrication bronze bushing,1429620 Yellow POM Tin-plating DX bearing,PAP P20 sliding bearing
SF-2 boundary lubrication Bronze Bushing,1429620 Yellow POM Tin-plating DX Bearing,PAP P20 sliding bearing
(1) material structure is STEEL base + Bronze powder + POM (yellow).
(2) good load capacity and wear-resistant.
(3) applied to the vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc. Because of without lead, this product is according with environmental requirement.
|Product Name||SF-2 boundary lubrication bronze bushing,1429620 Yellow POM Tin-plating DX bearing,PAP P20 sliding bearing|
|Max load capacity P||Static Load||140N/mm²|
|Max line speed V||Grease Lubrication||2.5m/s|
|PV value limit||2.8N/mm²·m/s|
|Friction coef u||0.06~0.12|
|Mating Axis||Hardness||>270 HB|
|Typical application||It's used in vehicle chassis, forming machine tools, steel metallurgical machinery, mineral mountain machinery, hydraulic industry and rolling steel industry, etc.|
|Coefficient of linear expansion||11×10-6/K|
|Outside surface Plating||COPPER/tin|
|Notice: We can also develop according to customers special request while out of this table.|
PACKING AND DELIVERY
For bigger products: 2PCS-10PCS per plastic film roller (depends on the product size)
2. Outer Packing&Shipment Packing
8PCS-300PCS per carton (depends on the product size)
A: Our management is focused on exporting activities for more than ten years and we have our own bushing factory. TEHCO is always professional and reliable. Our advantages are multiple resource integration, strong quality assurance and excellent service level. We are always responsible for our products.
Q: Hong long is your delivery time?
A: Generally 10-25 days after order. It depends on the quantity.
Q: Do you produce samples? Is it free or extra?
A: For standard products, we produce samples free of charge for our customers. And the express costs will be burdened by the customer, but can be returned after the order is placed.
Q: How to ensure the quality?
A: We produce as per the confirmed technology or drawings for each order for our customers. And our factory has a strict quality control system. We inspect goods during production according to a certain frequency and we also perform the final inspection before the goods are packed.
Q: Do you like to serve the customers only with small orders?
A: We are always glad to grow up together with all our customers whatever big or small.We hope our customers become stronger and stronger to be with us.
Product Categories : Boundary Lubricating Bushing
