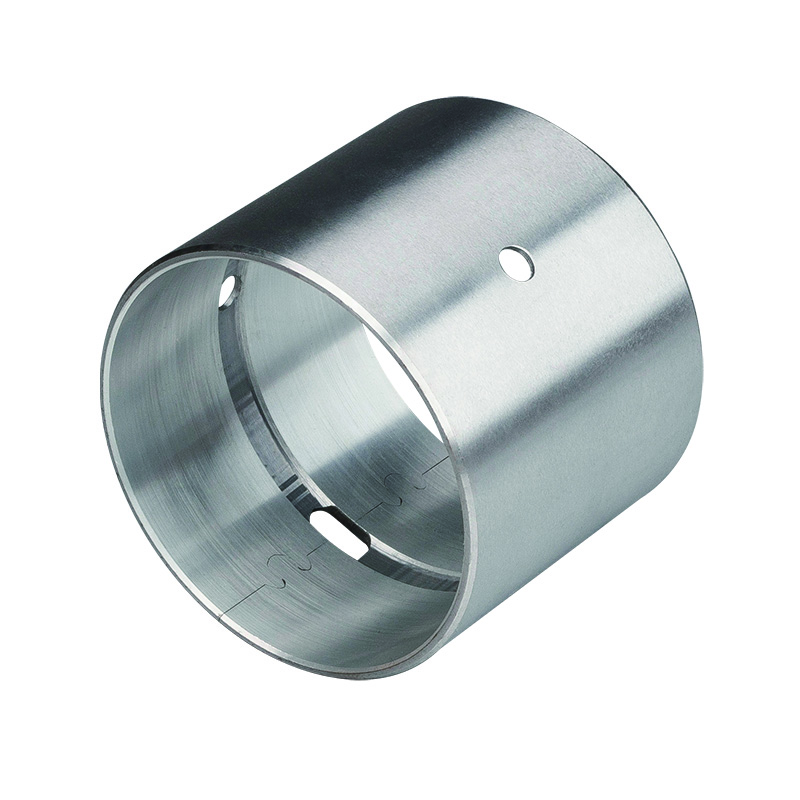

Steel Back Alloy Layer Bimetal Slide Bushing Bearing Sleeve for Air Compressor

Product Description

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0;margin:0;color:#333;font-size:14px;white-space:pre-wrap}#detail_decorate_root .magic-3{text-align:center;padding:0;line-height:20px;color:#333;margin:0}#detail_decorate_root .magic-4{font-size:18px}#detail_decorate_root .magic-5{text-align:center}#detail_decorate_root .magic-6{font-size:14px}#detail_decorate_root .magic-7{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-8{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-9{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-10{margin:0;padding:0}#detail_decorate_root .magic-11{width:750px}#detail_decorate_root .magic-12{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-13{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-14{width:750px;border-collapse:collapse}#detail_decorate_root .magic-15{padding:5px 10px;overflow:hidden;width:271px;box-sizing:content-box}#detail_decorate_root .magic-16{padding:5px 10px;overflow:hidden;width:431px;box-sizing:content-box}#detail_decorate_root .magic-17{padding:5px 10px;overflow:hidden;width:724px;box-sizing:content-box}#detail_decorate_root .magic-18{display:none}#detail_decorate_root .magic-19{padding:5px 10px;overflow:hidden;width:164px;box-sizing:content-box}#detail_decorate_root .magic-20{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-21{font-size:24px}#detail_decorate_root .magic-23{width:446px}#detail_decorate_root .magic-24{overflow:hidden;width:446px;height:264.4743935309973px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:-27.649595687331537px;width:625px;height:264px}#detail_decorate_root .magic-26{width:300px;display:flex;flex-direction:column;margin-right:0;margin-left:4px}#detail_decorate_root .magic-27{padding:0;line-height:20px;font-weight:bold;color:#333;margin:0}#detail_decorate_root .magic-28{padding:0;line-height:20px;color:#333;margin:0}#detail_decorate_root .magic-29{vertical-align:top;display:inline-block;padding-right:4px;width:50%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-30{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-31{width:371px;height:200px;overflow:hidden}#detail_decorate_root .magic-32{position:relative;left:0;top:-28px;width:371px;height:246.715px}#detail_decorate_root .magic-33{padding:0;margin:0;white-space:pre-wrap;font-size:16px}#detail_decorate_root .magic-34{position:relative;left:-34px;top:0;width:412.186px;height:200px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:198.75px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:198.75px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:500.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:500.25px}#detail_decorate_root .magic-39{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:-34.18328840970351px;width:482px;height:321px}#detail_decorate_root .magic-41{overflow:hidden;width:373px;height:321.7250673854448px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-42{margin-top:0;margin-left:0;width:482px;height:321px}#detail_decorate_root .magic-43{overflow:hidden;width:498px;height:320.4220821001158px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-44{margin-top:-6.007914039377171px;margin-left:0;width:498px;height:332px}#detail_decorate_root .magic-45{width:248px}#detail_decorate_root .magic-46{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-47{margin-top:0;margin-left:0;width:247px;height:165px}#detail_decorate_root .magic-48{overflow:hidden;width:248px;height:158.13223464783204px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-49{margin-top:-7.095677195736053px;margin-left:0;width:247px;height:165px}#detail_decorate_root .magic-50{padding:0;line-height:20px;margin:0}#detail_decorate_root .magic-51{color:#333}#detail_decorate_root .magic-52{overflow:hidden;width:498px;height:526.6937974520654px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:4px}#detail_decorate_root .magic-53{margin-top:0;margin-left:-170.2242311156865px;width:789px;height:526px}#detail_decorate_root .magic-54{overflow:hidden;width:248px;height:172.32358903930415px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-55{margin-top:0;margin-left:0;width:316px;height:172px}#detail_decorate_root .magic-56{overflow:hidden;width:248px;height:172.32358903930415px;margin-top:4px;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-57{margin-top:0;margin-left:0;width:292px;height:172px}#detail_decorate_root .magic-58{margin-top:0;margin-left:0;width:258px;height:172px}#detail_decorate_root .magic-59{overflow:hidden;width:750px;height:359.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-60{margin-top:0;margin-left:0;width:750px;height:359.25px}#detail_decorate_root .magic-61{overflow:hidden;width:750px;height:444.444px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:750px;height:444.444px} Product Description
STEEL Back Alloy Layer Bimetal Slide Bushing Bearing Sleeve for Air Compressor

all magic-14">
Material
Steel + Bronze alloy AlSn20Cu
Typical Application
High speed, heavy load engine main shaft and air compressor, cooling machine.etc.
Max Dynamic Load
90N/mm²
Max Line Speed (Oil)
15m/s
Max PV Value  (Oil)
8N/mm².m/s
Friction Coefficient (Oil)
0.04~0.12
Max Working Temperature
Grease 150℃, Oil 250℃
Mating Axis
Hardness ≥270HB,  Roughness Ra=0.16~0.63
Alloy Layer Hardness
30~40HB
Thermal Conductivity
47W/mk
Coefficient  Of Linear Expansion
18×10-6/K
We can also develop according to customers special request while out of this table
